The starting point of the JH7 project was the classic model L-12 from the "Land Song" series - this model has undergone thorough field testing in various complex conditions.
From L-12 to JH7, the following core capabilities have been fully retained:
· 1200-meter drilling capacity (N specification), meeting the mainstream requirements for medium and deep-hole construction
· Wucheng's 140kW reliable power, with fuel economy and output stability having been verified by the market.
Standardized and modular design ensures efficient transportation, assembly and maintenance.
The JH7 Precision Edition is a rational configuration optimization carried out by the "Land's Song" R & D team on the same technical platform, specifically for certain construction scenarios.
|

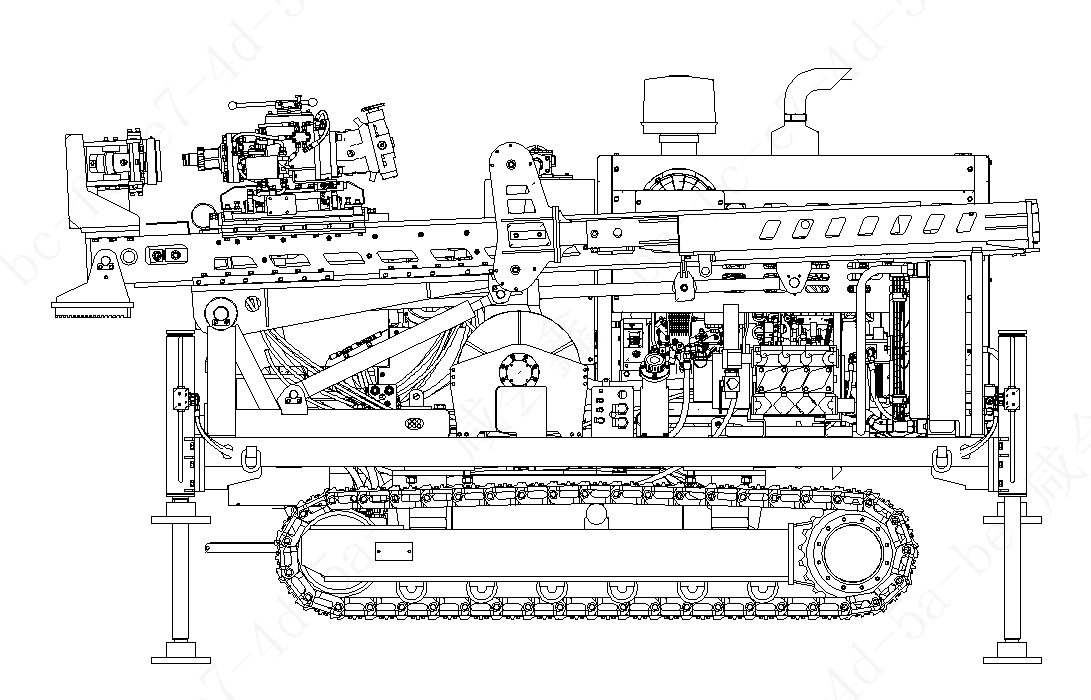

Configuration parameters
|
||
| Category |
Parameter item
|
JH7
|
| Dimensions and weight |
Length × Width × Height (mm)
|
4218×1965×2325
|
|
Overall weight of the machine
|
8.6T
|
|
|
Reference drilling capability
|
B specification
|
1400m
|
|
N specification
|
1200m
|
|
|
H specification
|
700m
|
|
|
P specification
|
300m
|
|
|
Power system
|
Engine
|
WEICHAI
|
|
Rated power
|
140 kW
|
|
|
Rated rotational speed
|
2000-2200rpm
|
|
|
Electrical system
|
24V
|
|
|
Hydraulic system
|
Main pump
|
28MPa-235l/min
|
|
Auxiliary pump
|
20 MPa-40l/min
|
|
|
Auxiliary pump
|
20MPa-40l/min
|
|
|
Auxiliary pump
|
16MPa-30l/min
|
|
|
Hydraulic oil cooling
|
Air-cooled
|
|
|
Rotating power head
|
Power head form
|
Plunger motor (manual speed control)
|
|
Maximum torque
|
1550 Nm /3000 Nm
|
|
| Maximum rotational speed |
1300rpm
|
|
|
Main winch
|
Steel wire capacity
|
/
|
|
Increase the pulling force
|
/
|
|
|
Speed up
|
/ | |
|
Auxiliary winch
|
Steel wire capacity
|
1200m @ 8mm
|
|
Increase the pulling force
|
Empty-line drum: 13KN Full-line drum: 4KN |
|
|
Speed up
|
Empty drum: 183 meters per minute Full drum: 600 meters per minute |
|
|
Input system
|
Feed rate | Speed control |
| Pushing force | 79KN | |
| Promotion power | 127KN | |

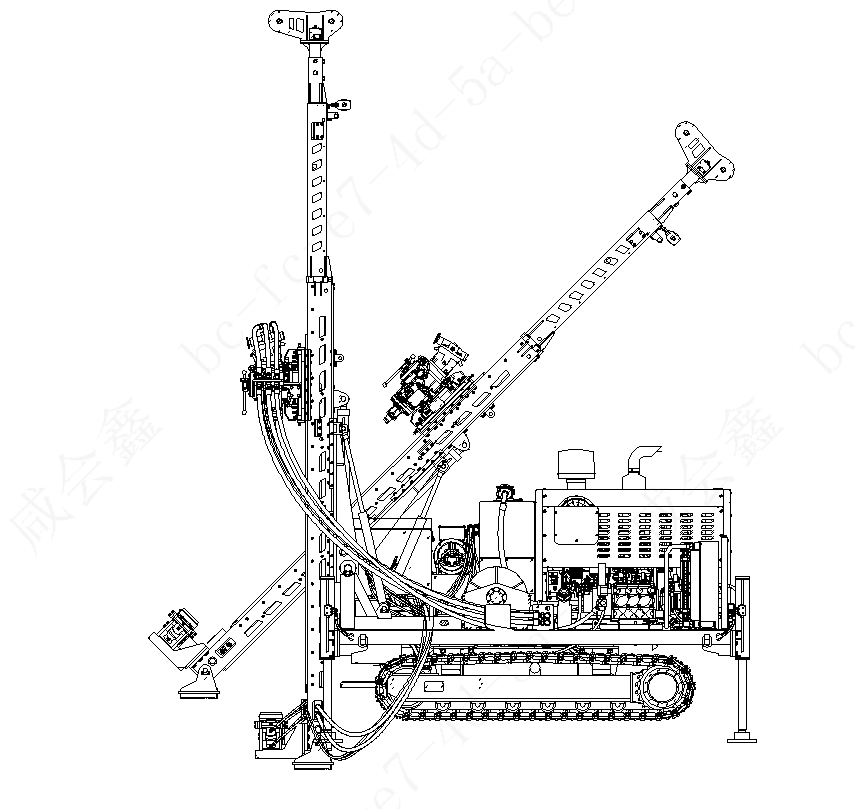

| Angle of entry | 45-90 ° | |
| Length of the drill pipe | 1.5m / 2m | |
|
Mud pump
|
form | Three-cylinder piston high-pressure pump form |
| Maximum flow | 200L/min | |
| Maximum pressure | 8Mpa | |
| Product manufacturing process | Spraying | Whole machine electrophoresis + KTL powder coating |
| Assembly | Standardization, modularization | |
